CYC X6 Controller Gen3 X1 Pro and Stealth

This controller replaces the predecessor ASI BAC855 and is only compatible with the CYC motors X1 Pro and X1 Stealth. For an upgrade from Gen2 to Gen3, we recommend installing the complete upgrade kit (X6 controller, torque sensor, axle, cranks, display, etc.). This can be requested from us if you are interested. When using this controller, the Gen3 speed sensor is also required, as this contains the Bluetooth receiver. This receiver is required to establish a connection with the smartphone and therefore to use the CYC Ride Control app.

CYC recommends using this controller with the SW102 or DS103 displays.

Features

• Permissible nominal battery voltage: 36-72V
• Peak phase current: 90A
• Peak battery current: 65A
• BT App Support: Yes (when using the Gen3 speed sensor)
• Waterproof: IP66
• Supported torque sensors: Gen2 and Gen3, whereby we clearly recommend use with Gen3
• Compatibility: X1 Pro Gen2 + 3, X1 Stealth Gen1+3 (there is no Gen2 here)

Connections:

• Main wiring harness
• Speed sensor
• Torque sensor
• Battery connection XT90
• 3x XT150 phase connection

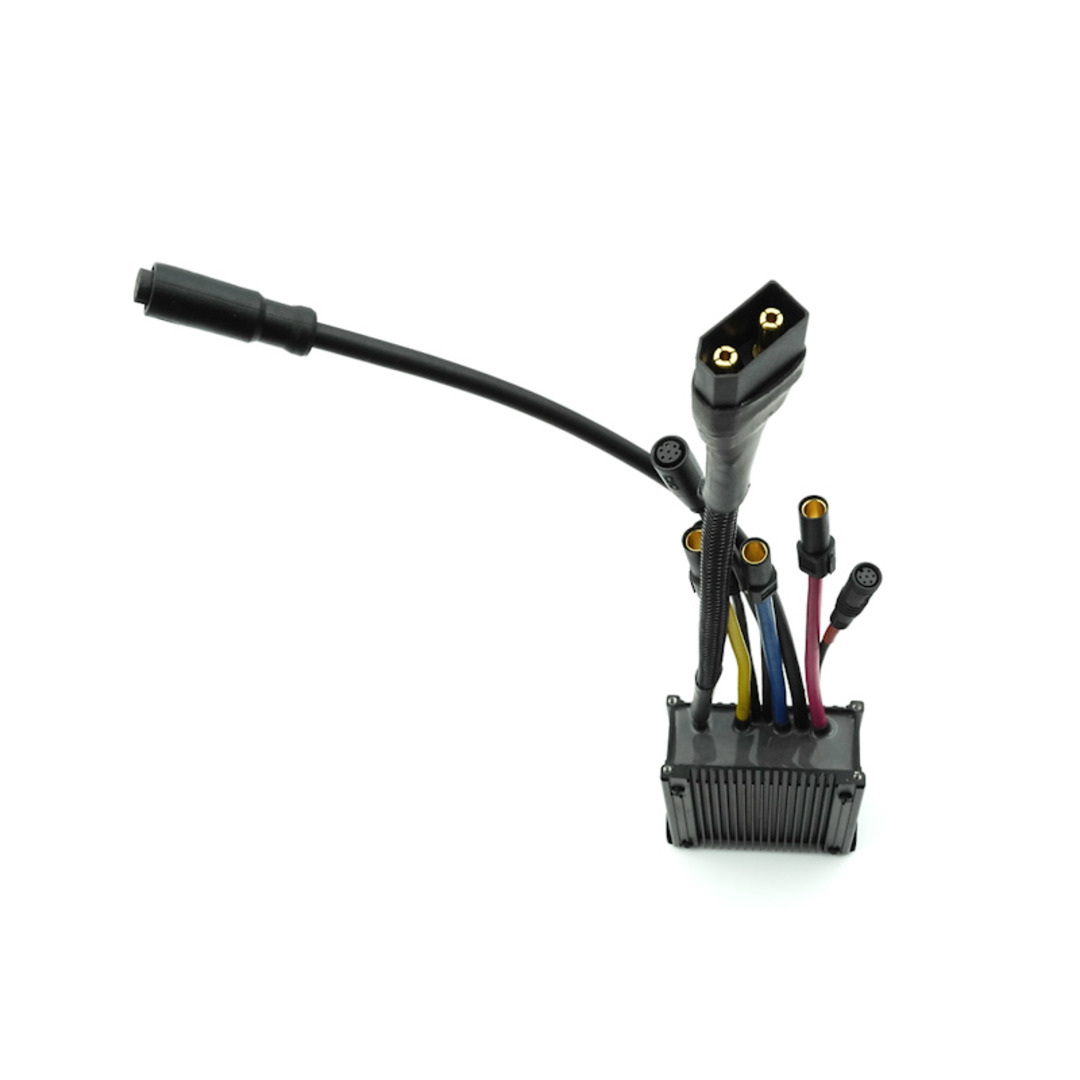

Only the controller is included in the scope of delivery (see illustrations). The Gen3 speed sensor and the corresponding bracket can be requested from us if required.
