Bafang BBS main wiring harness EB-BUS splitter

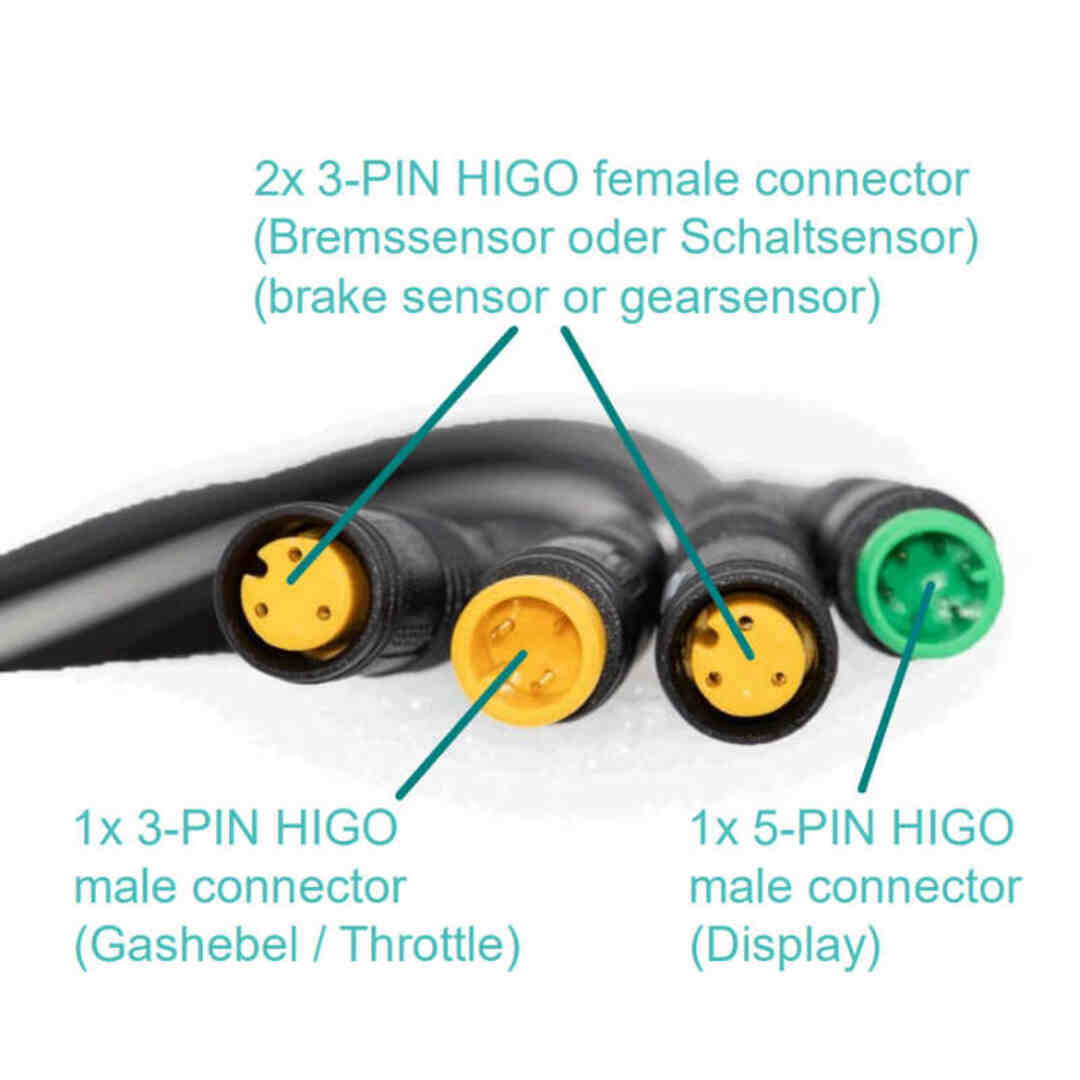

The main wiring harness runs from the engine to the front of the handlebars. The display, throttle, shift sensor and brake sensors are connected to this wiring harness. This version has 4 connections:

• 1x throttle lever (3 pin Higo plug yellow)
• 1x display (5 pin Higo plug green)
• 1x brake lever or gear sensor (3 pin Higo socket yellow)
• 1x brake lever or gear sensor (3 pin Higo socket yellow)


Two brake levers or two gear sensors can also be used. If a third Higo socket is required (e.g. 2x brake sensor and 1x gear sensor) then this splitter is necessary.

Cable length: approx. 105 cm; we also have a suitable extension (35 or 57 cm) if this cable is too short for you.
