Name: 250-750W e-bike mid-motor CYC PHOTON
Brand: CYC MOTOR
SKU: 7100-VHA
Availability: BackOrder
Rating: 4.94 (0 reviews)

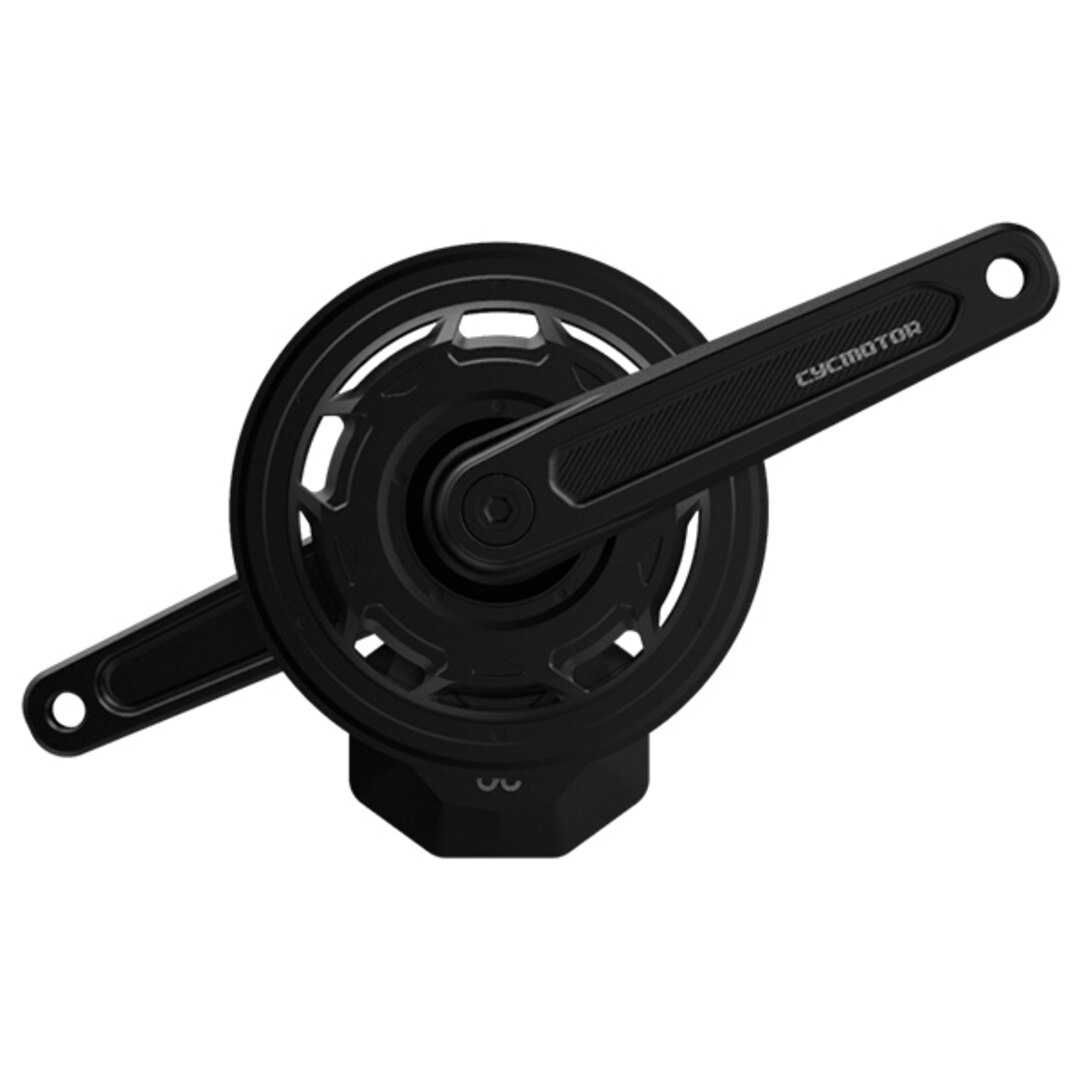

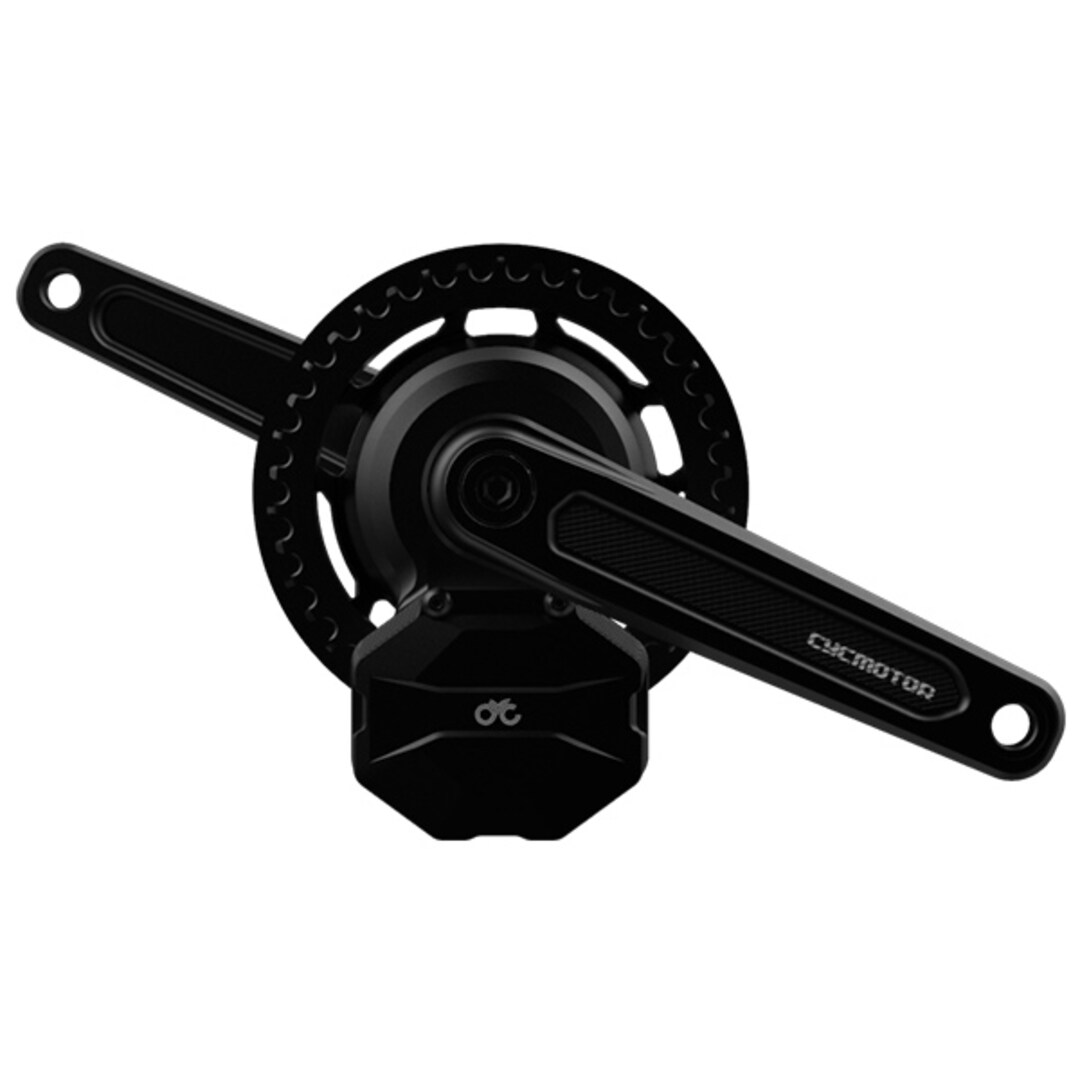

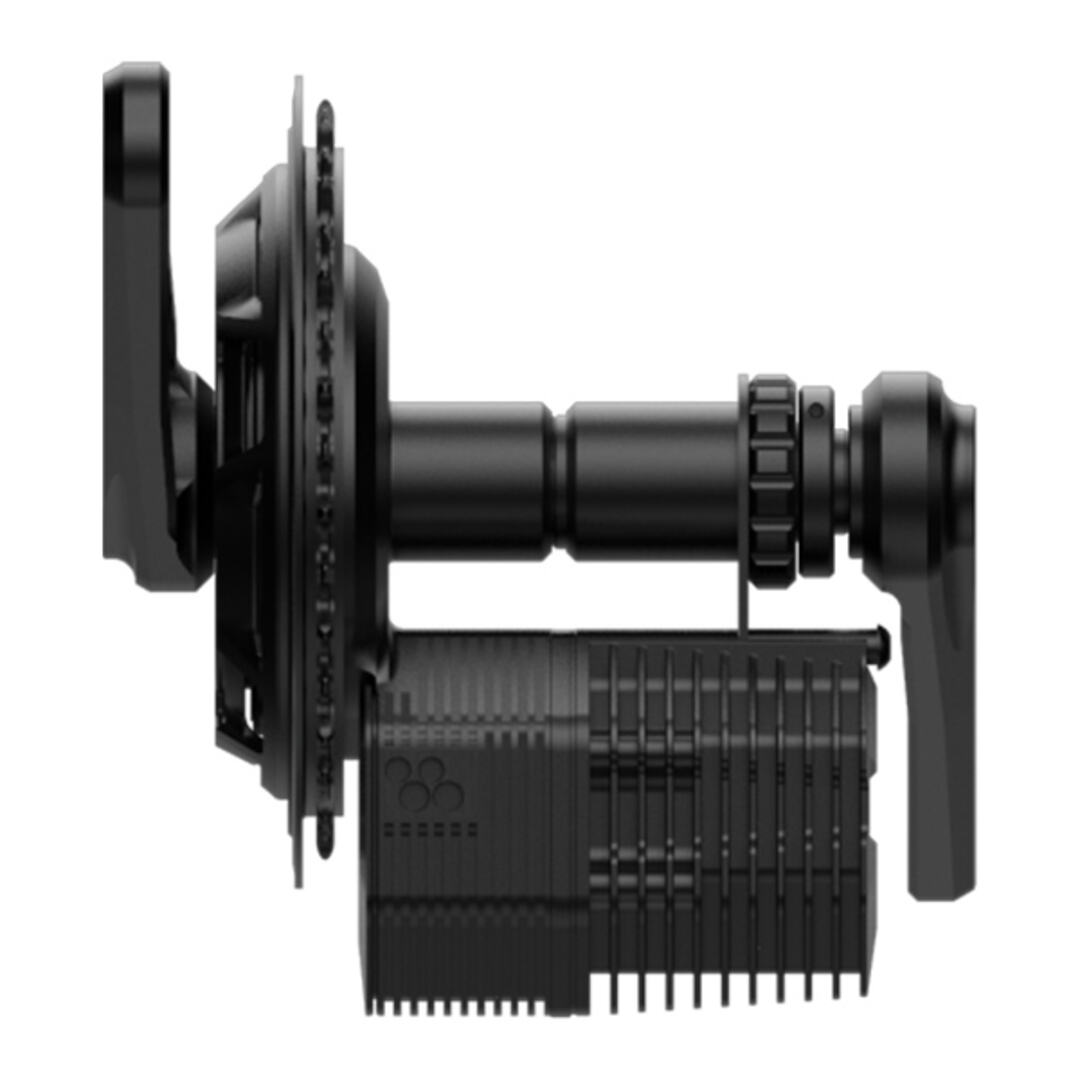

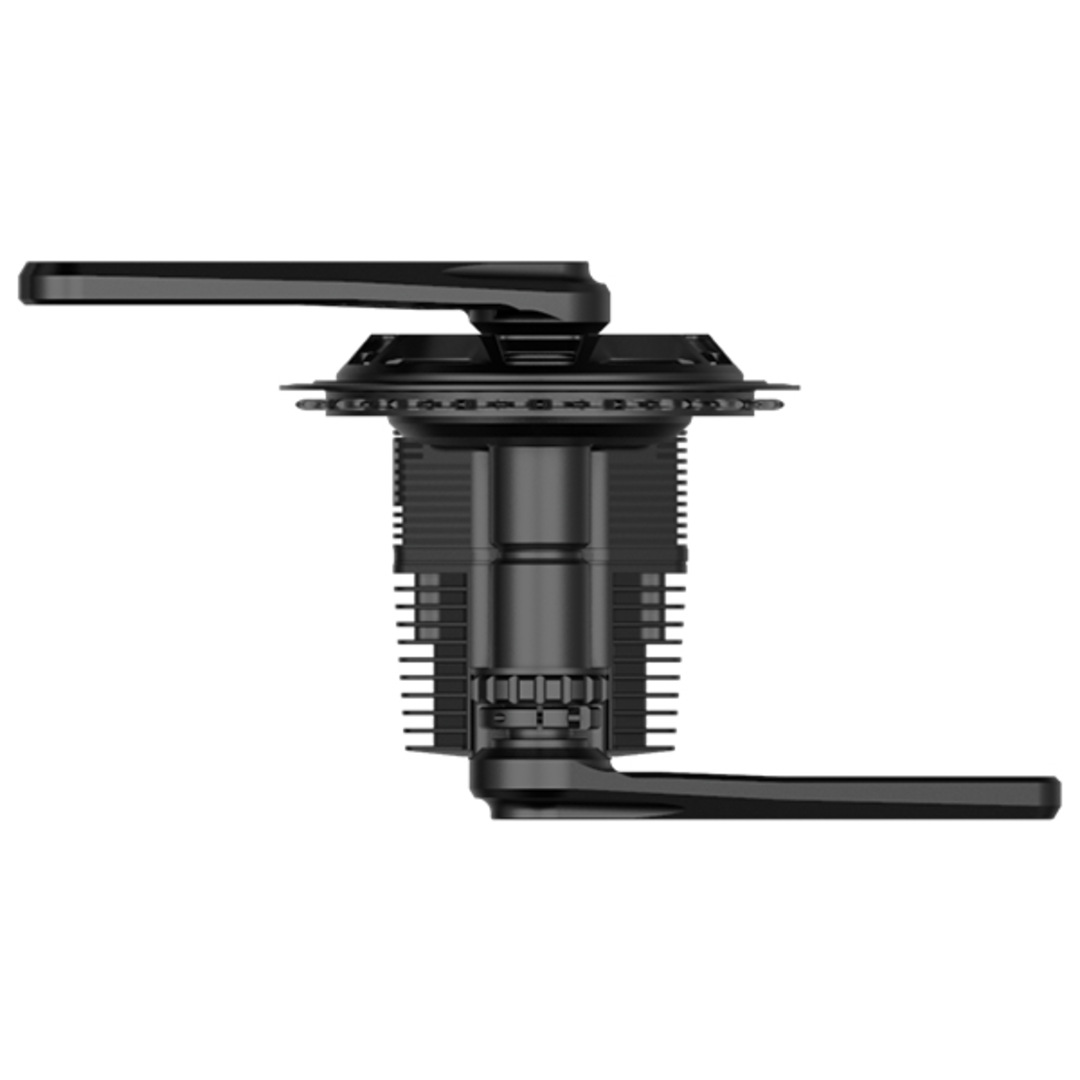

250-750W e-bike mid-motor CYC PHOTON

Rated 4.94 out of 5 based on 96 customer ratings

(0 customer reviews)

in EU: Anzeige inkl. Mwst. | outside EU: autom. displayed excl. tax

Discover the modern CYC Photon e-bike retrofit motor: torque control, low weight, compact design, smartphone app, modular design and much more.

Für kostenlosen Versand füge noch 200,00 € hinzu!

CYC PHOTON – Next generation e-bike technology

With the CYC Photon e-bike mid-motor, you can experience a completely new e-bike feeling. This motor is the worthy competitor to the proven and robust Bafang BBSHD mid-motor and offers numerous advantages:

Torque sensor control: Experience a seamless, intuitive and natural driving experience.
Low weight: The motor (incl. controller) weighs just 3.3 kg and is easy to handle.
Versatile power – 250W or 750W: The motor offers a rated power of 250-750 W (with various firmware options) and can deliver up to 2,000 W of power.
Elegant design: It’s not just the performance that impresses, but also the attractive design of the engine.
High torque: With an impressive 110 Nm of torque, you can master any terrain.
Compact design: Its slim design gives you more ground clearance and flexibility.
Compatibility: It fits bottom brackets with a width of 68 – 120 mm.
Smartphone app: Take advantage of an appealing smartphone app with 2 individually customizable driving profiles.
Modular design: The same motor can also be installed later with other bottom bracket widths.

The CYC PHOTON is more than just a motor, it is a revolution in e-bike technology. With patented technology, proprietary firmware (CYC) and controller development, it is full of innovation.

The 750W version of the motor differs from the 250W version only in the different firmware – the physical components are the same. If you prefer the 250W version, simply leave us a comment during the order process or send us an e-mail.

The Photon motor is available for the following bottom bracket widths (select above):

BSA 68-83 mm
BB92 mm
BSA 100 mm
BSA 120 mm

Here you can find the dimensions of the Photon motor

In the download area you will also find further CYC downloads (operating instructions, printouts, …).

In addition to the motor, the following components are included:

Controller
Mounting kit
Speed sensor
Main wiring harness
Spacer, ISIS axle

Please note that this item contains the motor, controller, mounting components, cables and the ISIS axle – but no chainring, display, throttle, cranks, etc. If you need a complete kit, we recommend using our retrofit kits or configuring your individual e-bike kit using the links below:

750W Photon retrofit kit

250W Photon retrofit kit

250-750W Photon configurator

Important note:
The CYC Photon motor has been carefully sealed by the manufacturer to ensure optimum reliability. Unauthorized opening or disassembly of the motor without express permission may cause serious damage and will void the warranty. We strongly recommend contacting us for any repairs to ensure the longevity and functionality of the motor.

Smartphone App:

Unleash the full potential of your CYC Photon motor with the new X6 controllers: Experience instant torque and power, stable off-road performance, lightning-fast throttle response and customized pedal assistance. Thanks to the CYC RIDE CONTOL smartphone app (linked below), all these functions are available to you at the touch of a button. Simply connect your smartphone to the controller via Bluetooth and enjoy the freedom to customize your ride to your liking.

Android App

IOS App

Attention: For the use of this drive unit on public roads and paths, the applicable regulations of your country must be observed and the settings on the motor with regard to maximum power and speed must be made accordingly. The user is responsible for complying with these regulations. Otherwise, this product may only be used on private and secured terrain!
