Name: CYC Display DS103
Brand: CYC MOTOR
SKU: 7905
Availability: InStock
Rating: 5.00 (0 reviews)

CYC Display DS103

Rated 5.00 out of 5 based on 4 customer ratings

in EU: Anzeige inkl. Mwst. | outside EU: autom. displayed excl. tax

This color display only fits CYC motors with X6 or X12 controller | compatible with 36-72V batteries | male 5-pin HIGO connector

Für kostenlosen Versand füge noch 200,00 € hinzu!

In stock (can be backordered)

SKU: 7905 Categories: Displays, Sale, Sale

Description

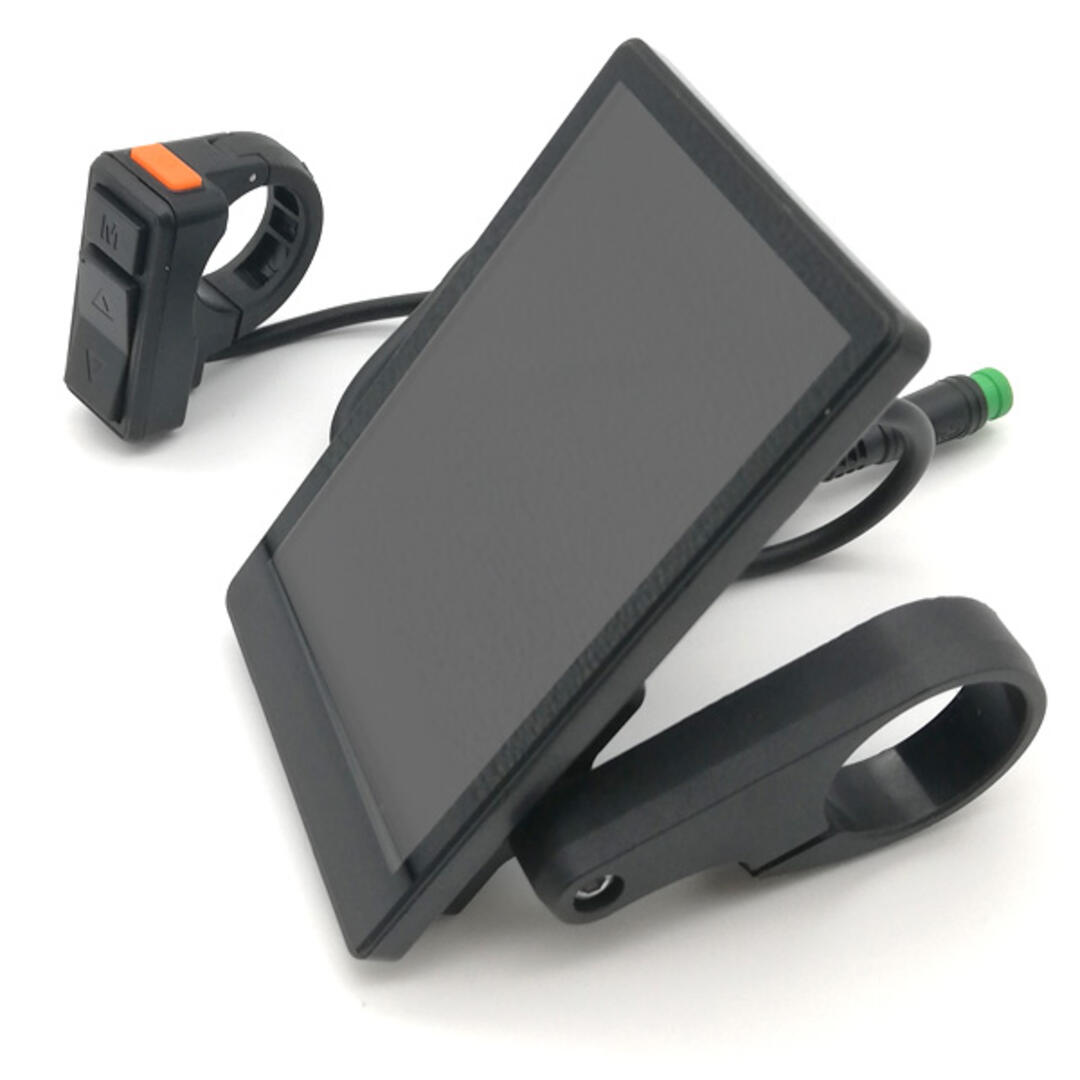

Large color display for CYC Gen3+4 motors, incl. Photon

The compact 3.5″ TFT landscape color display shows:

Battery voltage in volts
Motor power and human power in watts
Engine speed
Travel time and distance traveled per tour or in total (ODO)
Cadence (cadence)
Average speed

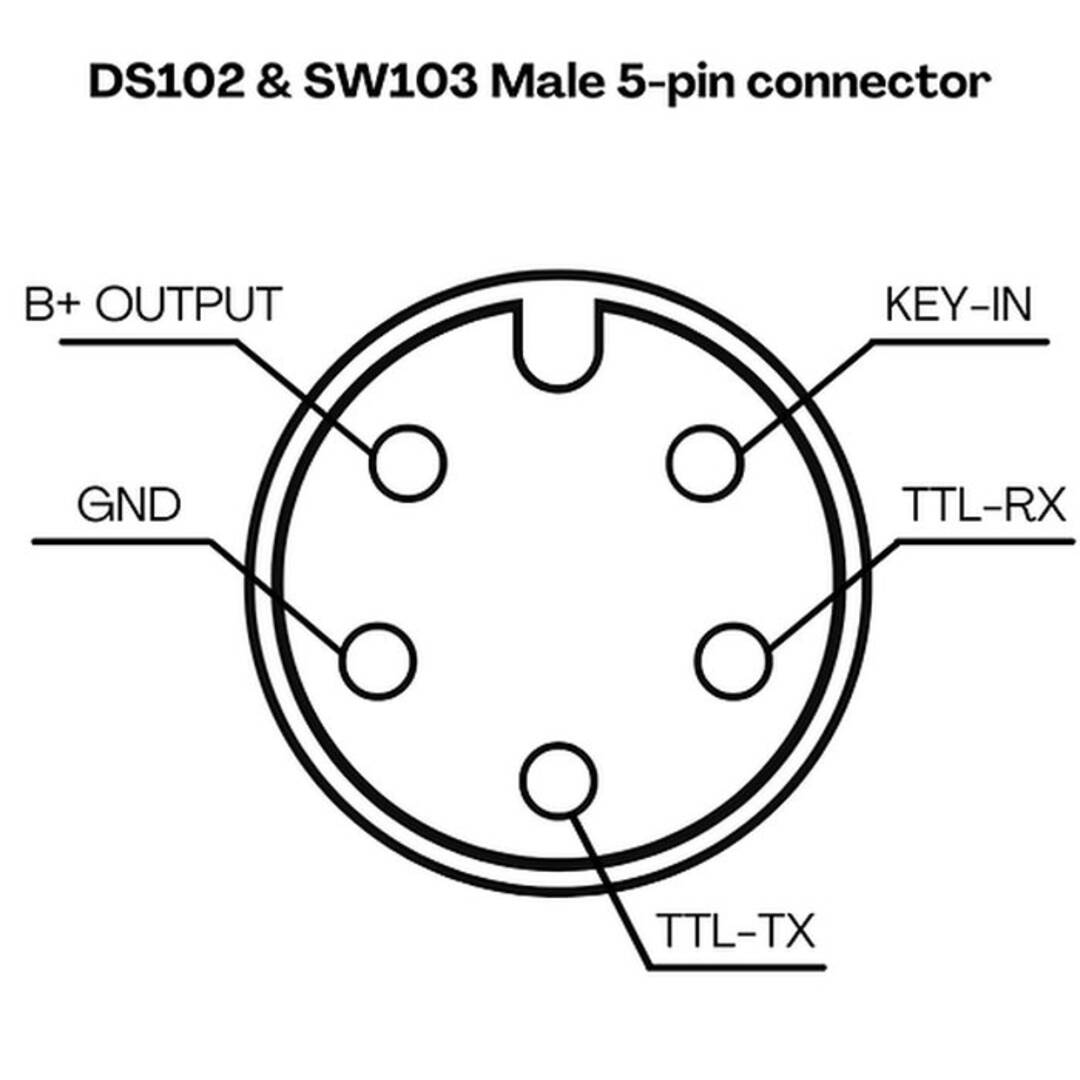

Dhe DS 103 display is connected to the green HIGO cable of the X6 controller splitter (display connector is male, 5-pin Higo, see picture). The pin assignment can be found above in the product photos.

This display only fits CYC motors with X6 or X12 controller!

Features:

Simple and lightweight design with separate mounting bracket

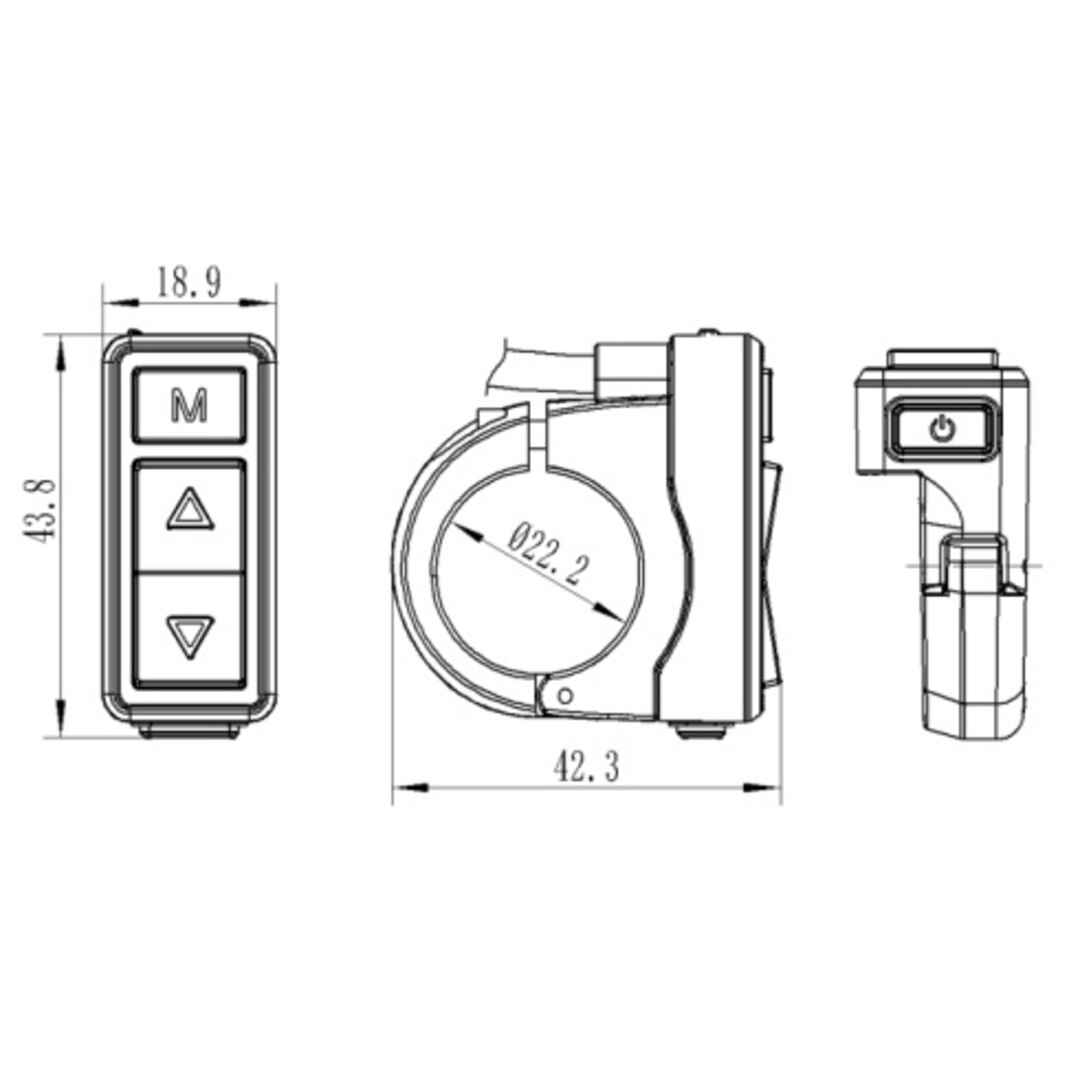

External control panel with 4 buttons (On/Off, Up, Down, M)
3.5-inch TFT color screen with high brightness and high contrast
Perfect for outdoor use, waterproof to IP65
Compatible with 36V-72V batteries (10S – 20S)
Error codes
Walk mode
for handlebar diameters 22.2, 25.4 and 31.8 mm

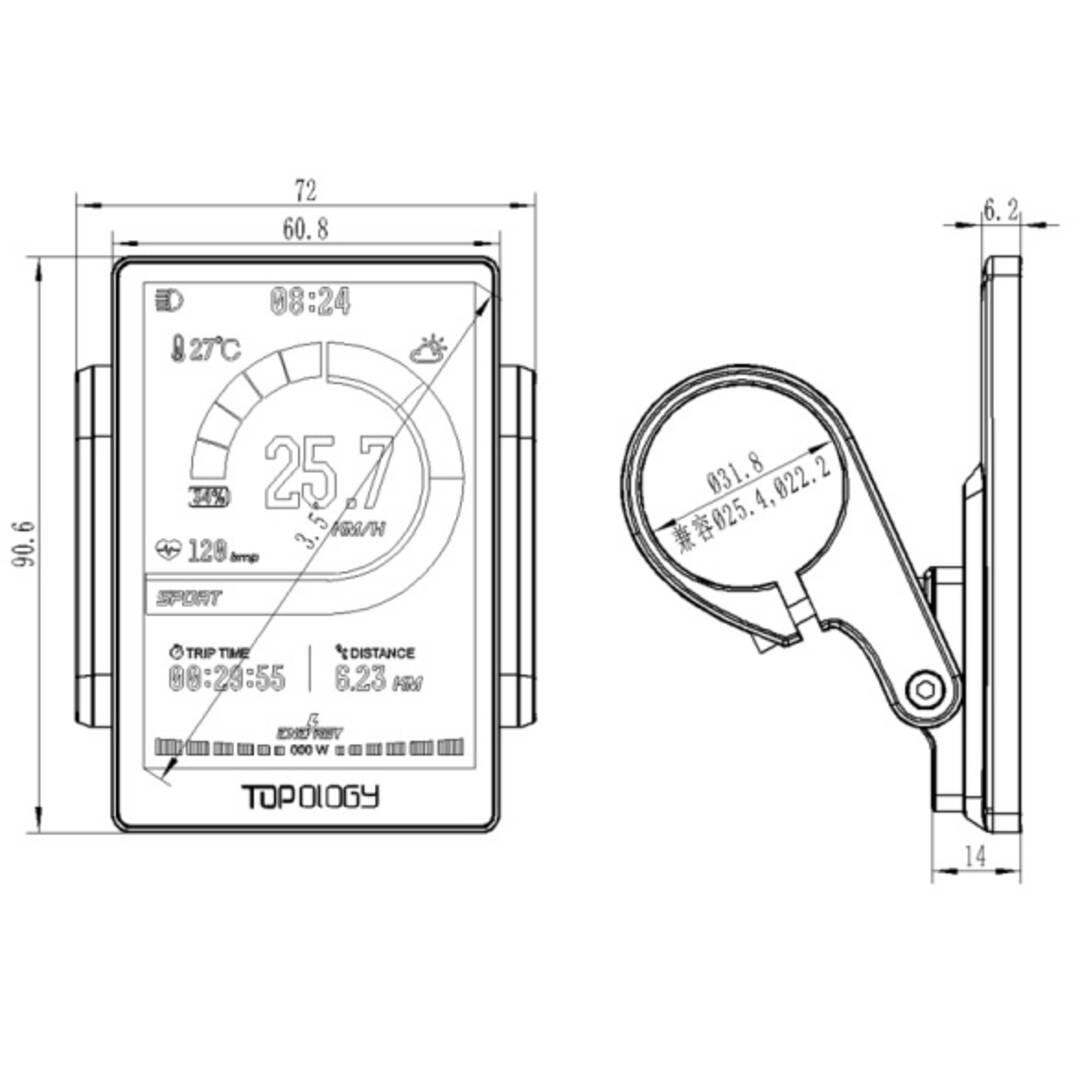

Dimensions: 91 (L) x 61 (W) x 6 (H) mm

DOWNLOADS

User Manual (EN) - Display DS103

Additional information

Weight	0,6 kg
Kompatibel mit	CYC X1 Pro, CYC X1 Stealth
Nicht kompatibel mit	Bafang BBS01, Bafang BBS02, Bafang BBSHD
Typ / Verwendung	Display for CYC motors
Brand	CYC MOTOR
